Industrial Silos are designed and delivered in a wide range of sizes for many different dry materials.
Drone Video of Rex James Stock Feed Installation 2019

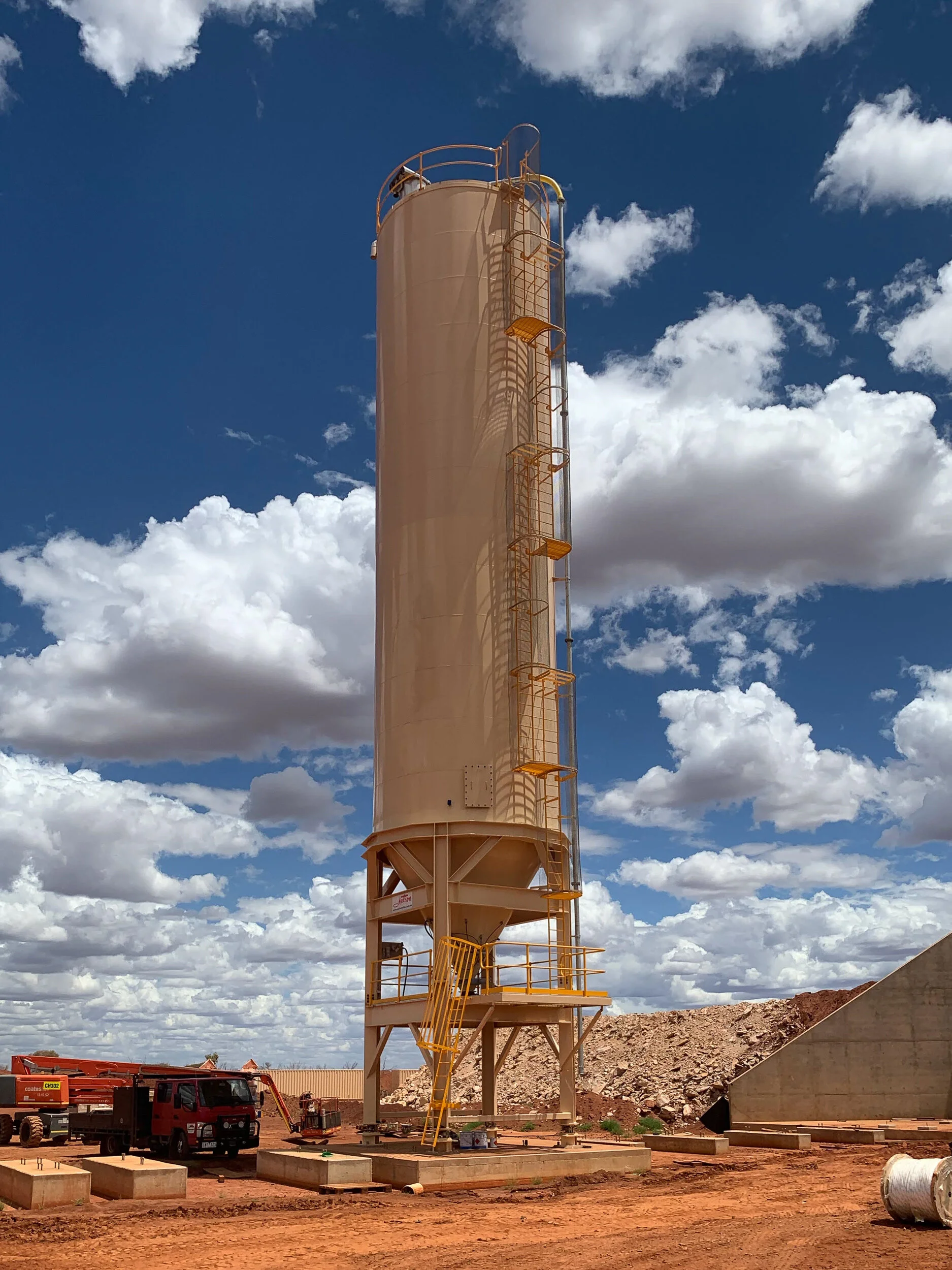

200 Tonne Lime Silo February 2021
Manufactured by Nelson Silos at Rochester Victoria. Transported to Karlawinda Gold Project at Newman in Western Australia on Nelson Silos Trucks and support Vehicles. Assembled on Site by Nelson Silos Employees. 4,000 km from Rochester to Newman (8,000 km round trip).

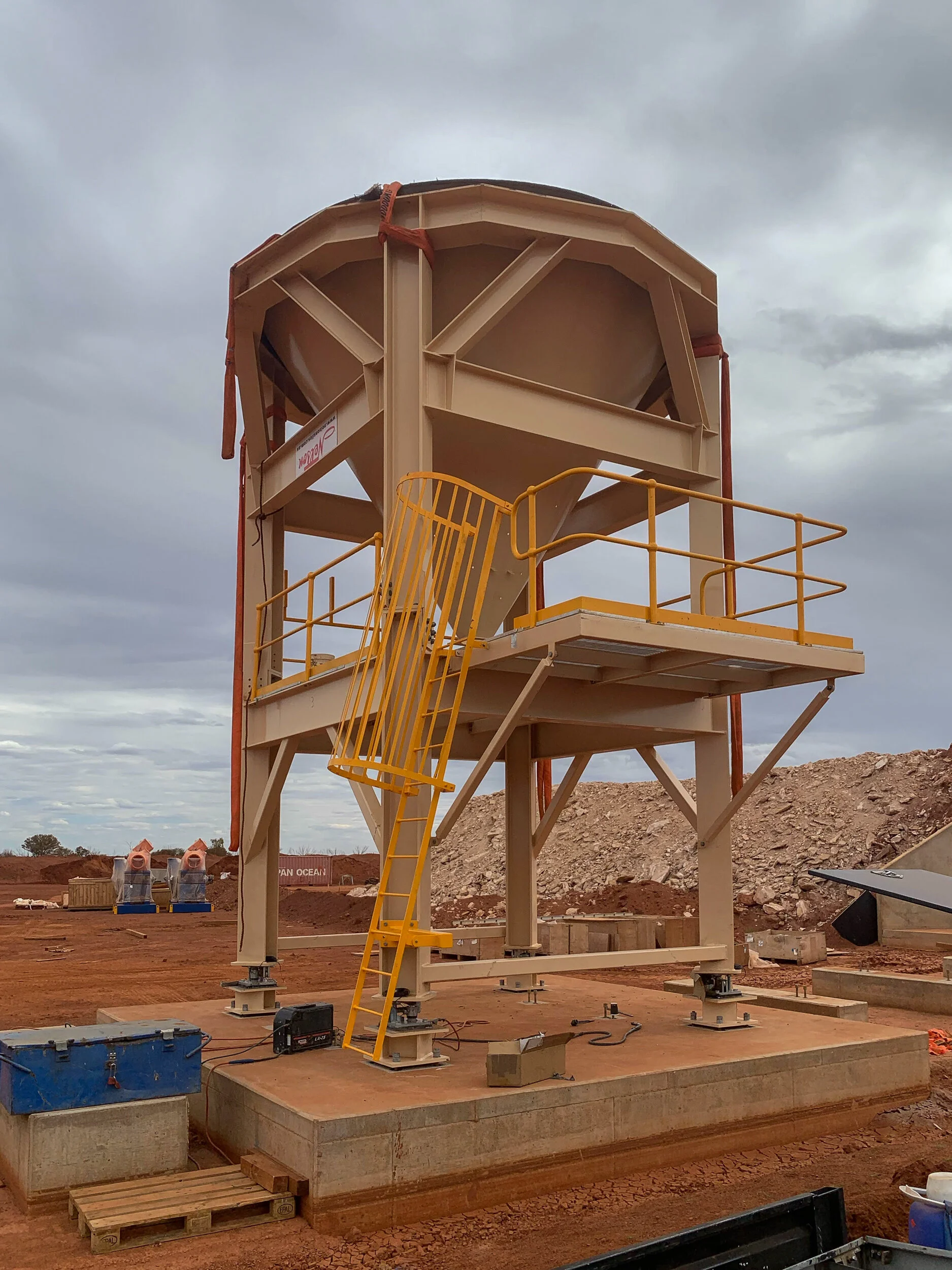

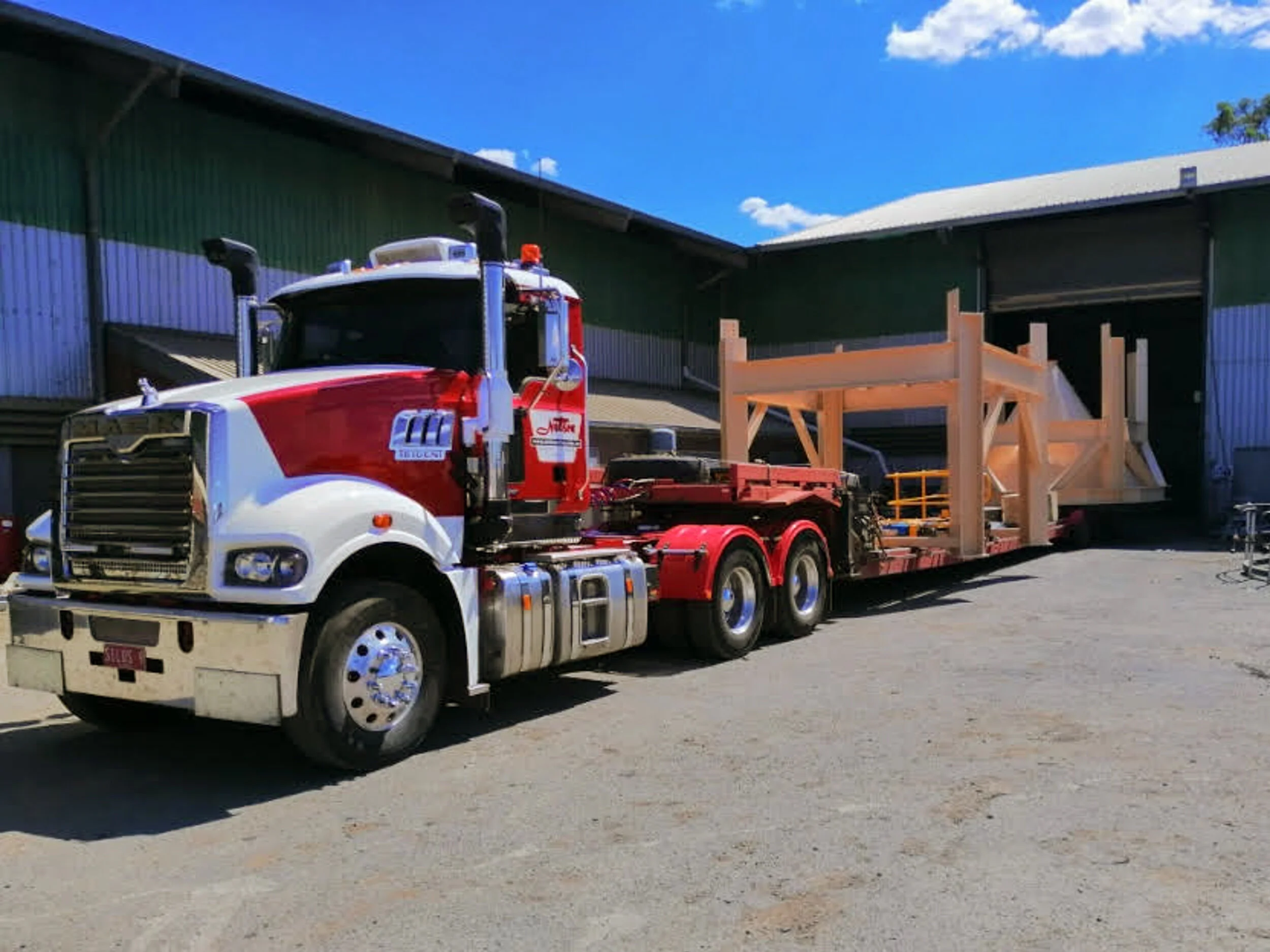

Silo Base
200 Tonne Lime Silo

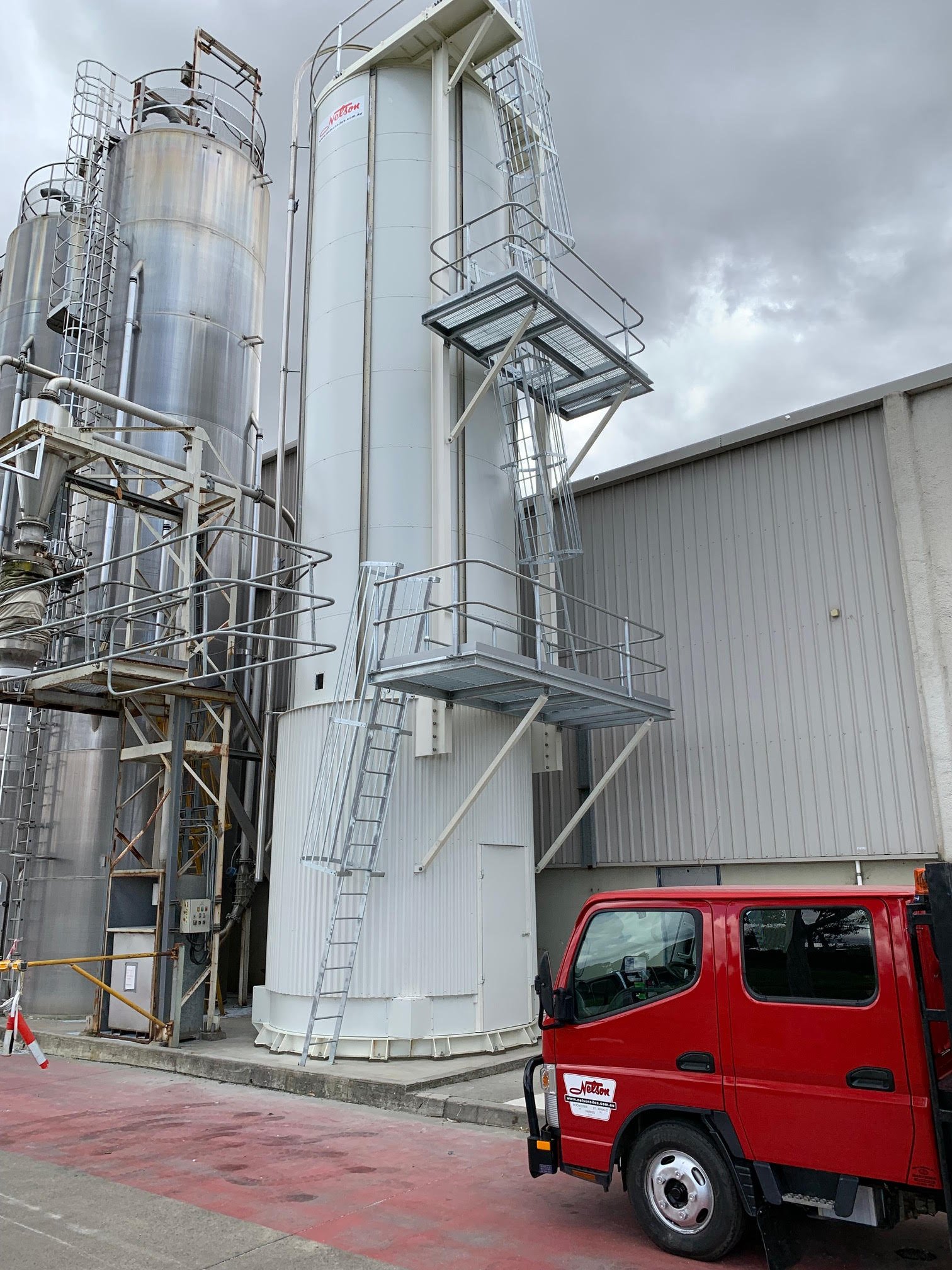

Visy Sydney
Visy Packaging Albury
Visy Packaging Albury
Irwin StockFeeds :

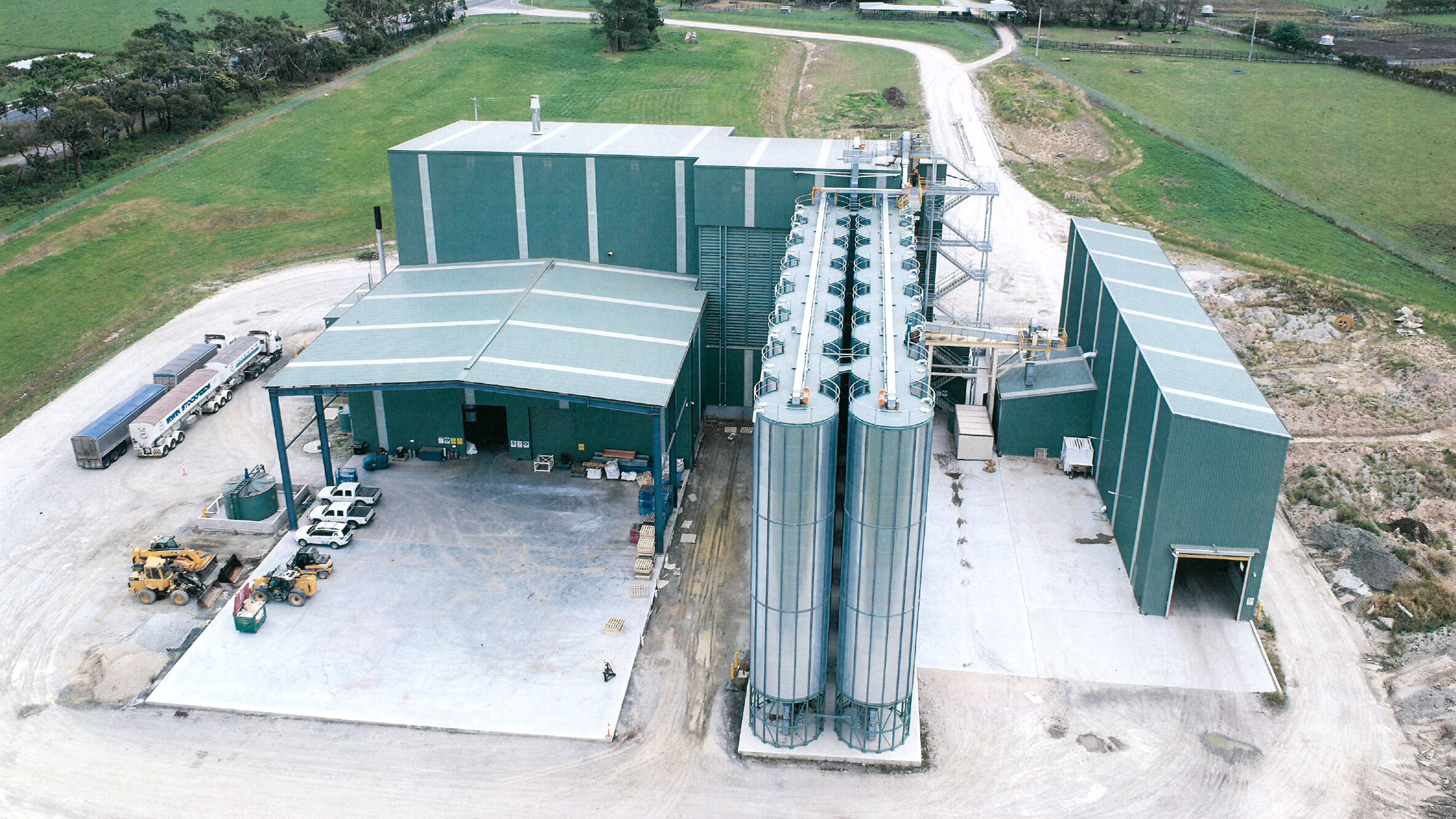

Lang Lang, Melbourne, Australia. 310m³ Grain Silos Capacity of 250 Tonne each.

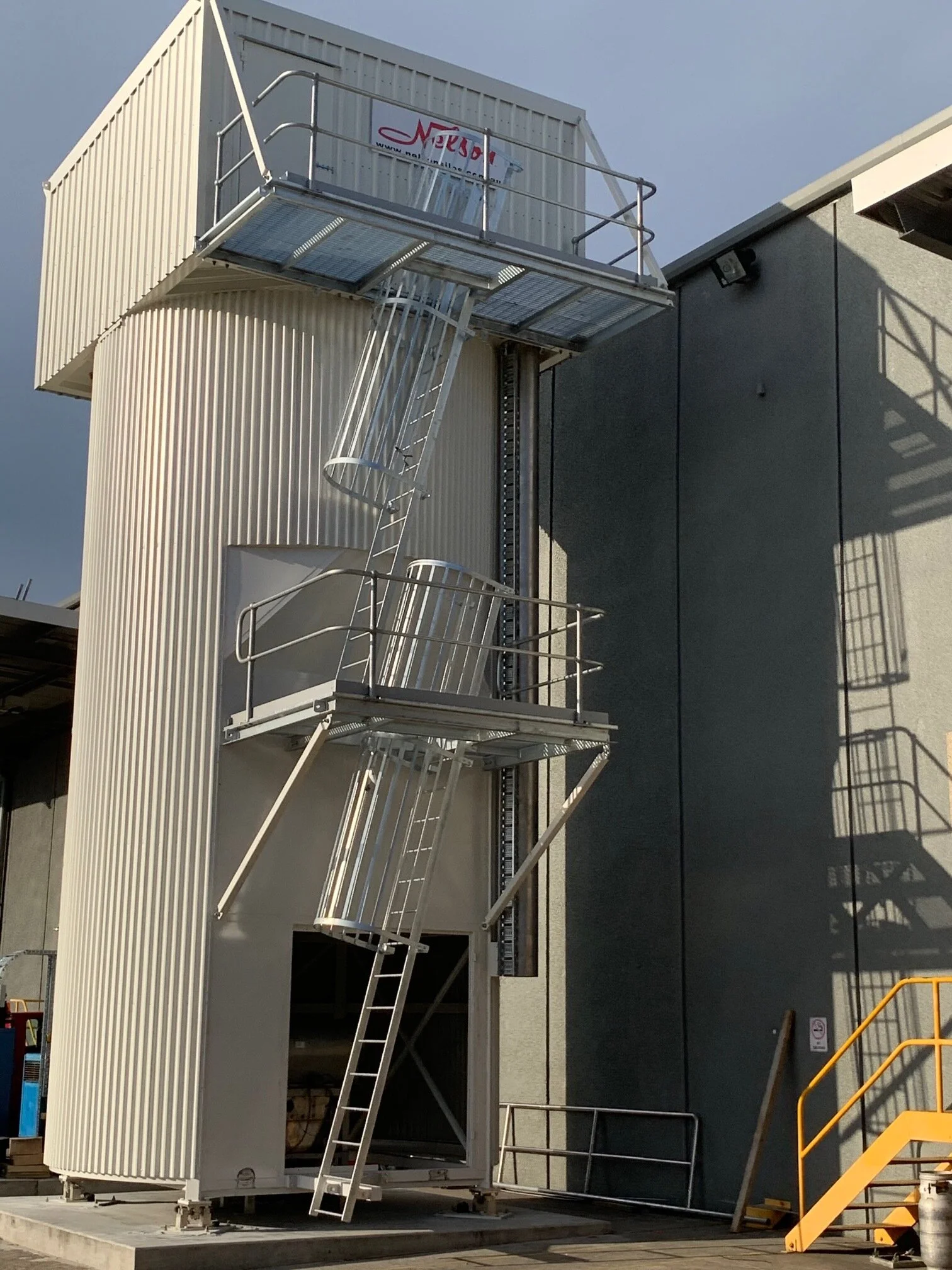

30 Tonne Sugar / Flour Silo
Stainless Steel. Insulated and Clad with Colorbond Steel
Polypropylene Storage Silo

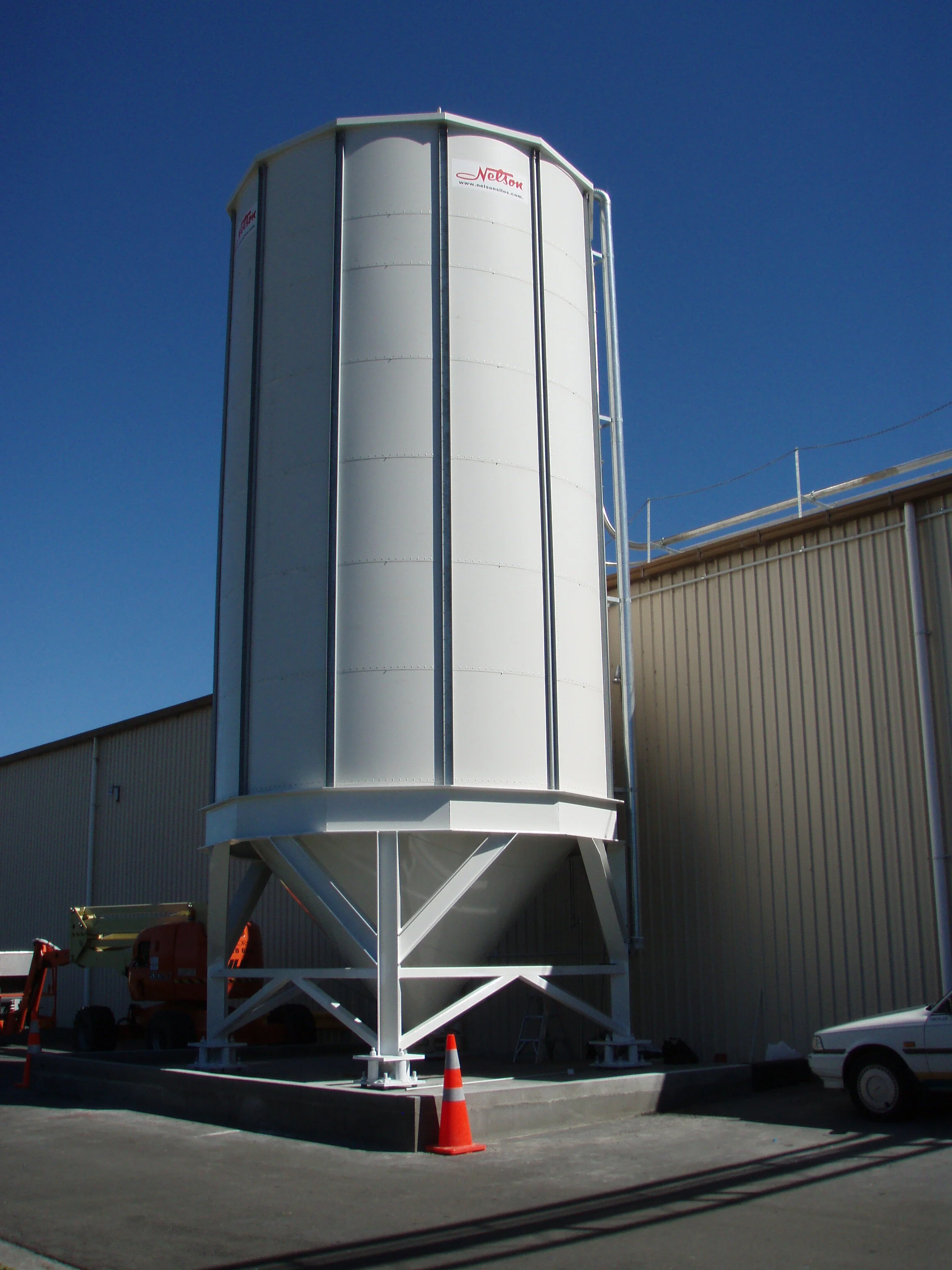

Polypropylene Storage Silo with 4 Leg Loadcell Kit
Lime Silos

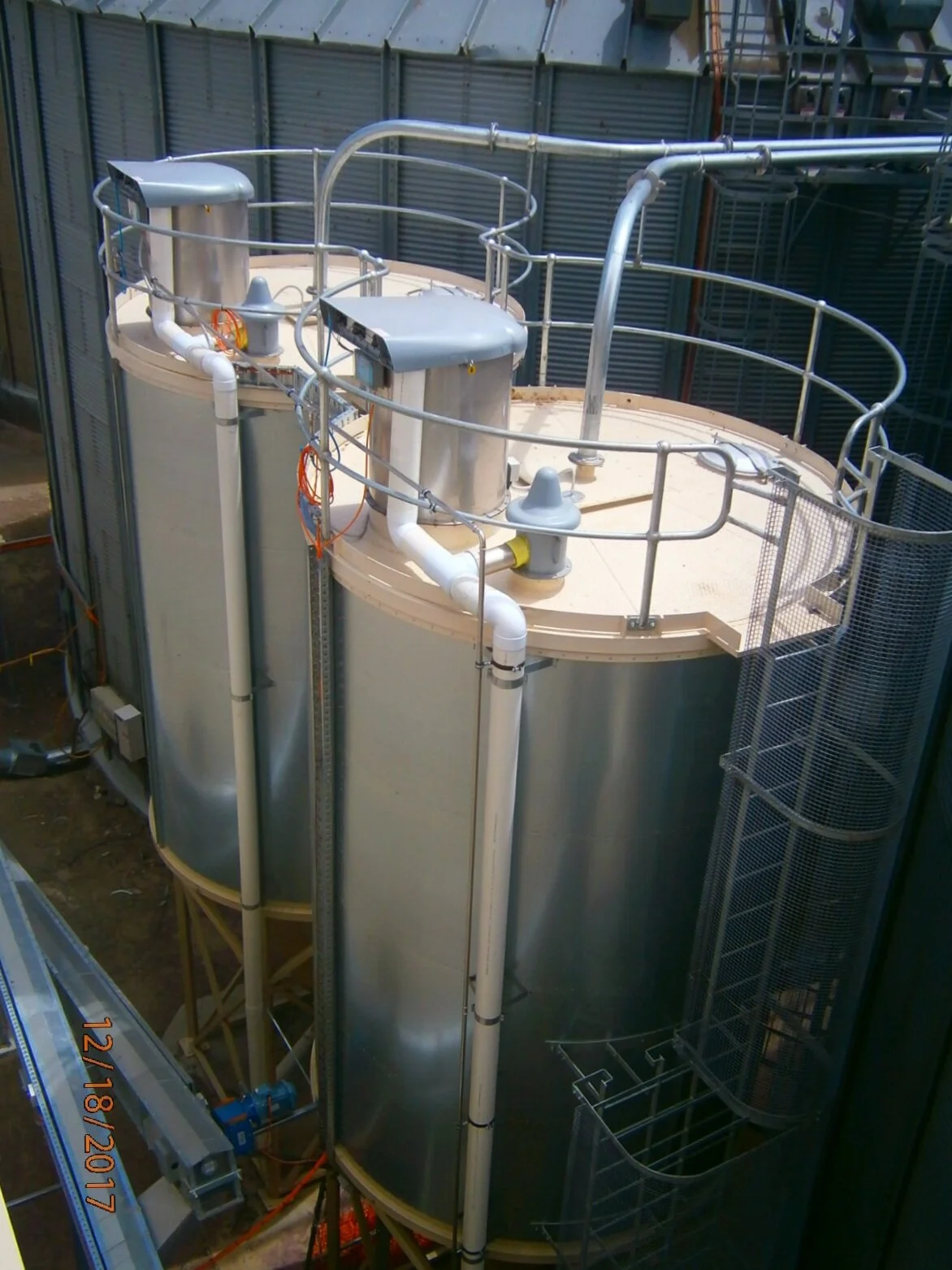

Dust Filters and Over/Under Pressure Valves.
We can fit vibrating cones or a Vibrapad Aeration System
Grain Storage Silo

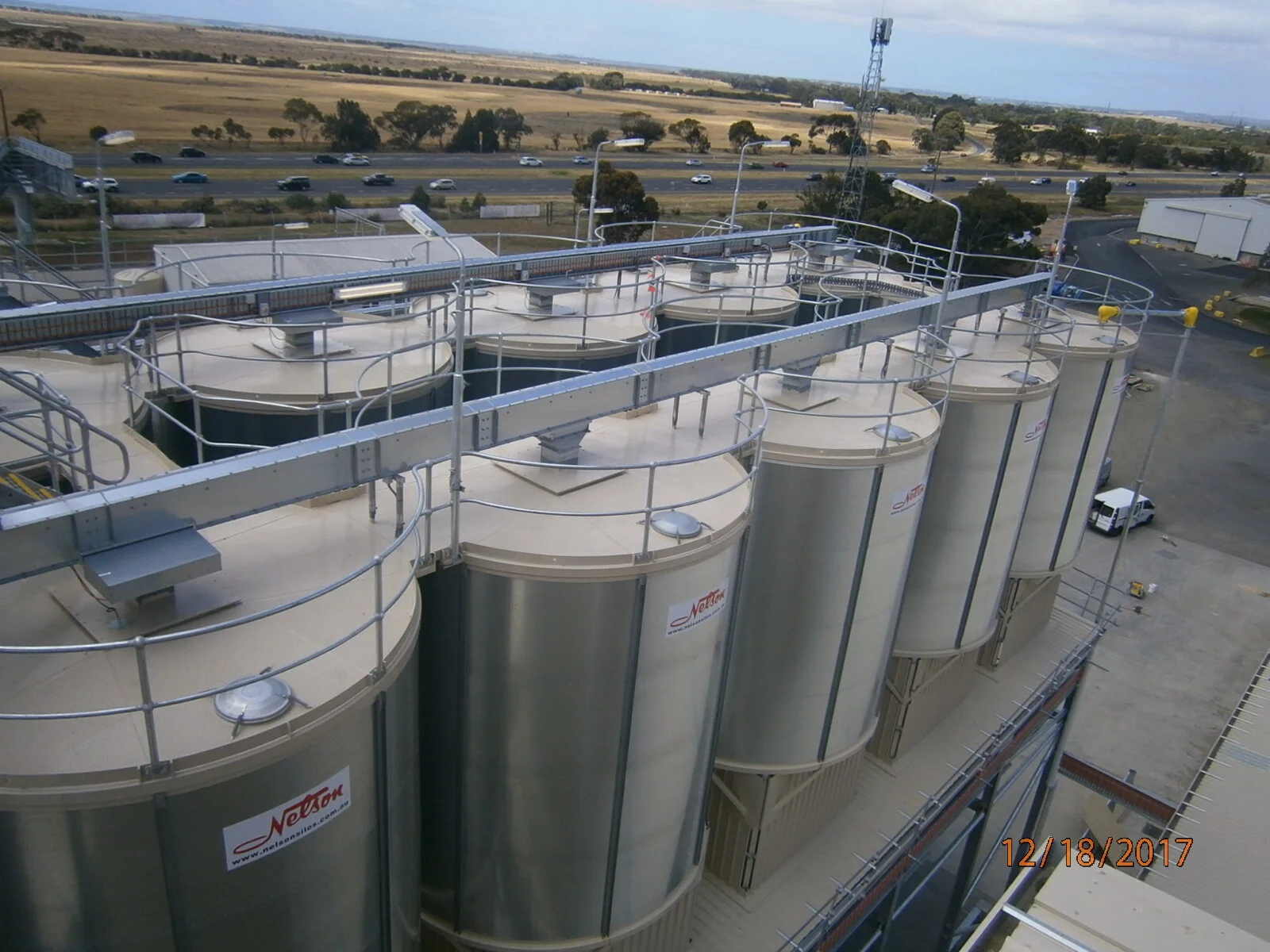

Flat Roof and Perimeter Handrails
Riverbank Stockfeeds VIC :
8 x 130 Cubic Metre Colorbond XRW outloading Silos.
(78 Tonne Capacity) 60 ° Degree Cone. Including the silo support structure and access walkways.
Laserlight (Aust) Pty. Ltd VIC :
A Bayer AG Company Cheltenham, Victoria.
4 x 130 cubic metre grade 316 stainless steel fully welded polycarbonate storage silos
(96 tonne capacity) 60° degree cone.
The Pump House, QLD :
2 x microbatch feeders & stainless steel mixing Tanks.
Storage of calcium & magnesium sulphate on a 4 leg loadcell system.

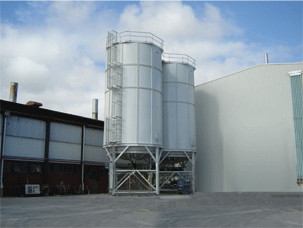

CSR Silos :
Silos are 6 metres in diameter with a ground to Roof height of 15 metres.
2 x 250 Cubic Metre (200 Tonne) Stucco Silos with load cells and aeration Vase, located at the new C.S.R. Gyprock Plant at Yarraville.
Alto Packaging :
Delivered and installed at Alto Packaging Hastings, New Zealand.
Storage of polyethylene (polymer) granules on a two leg loadcell system.
1 x 133.0 Cubic Metre (75 Tonne) capacity Colorbond XRW industrial silo.
Birla Nifty Pneumatic Cement Transfer System :

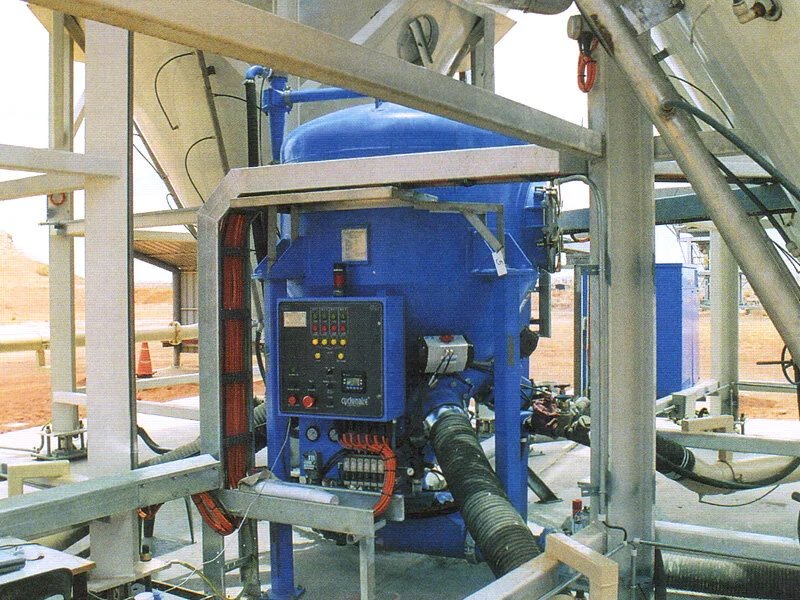

Four flexible hose inlets (three clearly seen) leading to the HC-75 Cyclonaire c/w shielded PLC controller. The conveyor discharge line is at the bottom RH corner.

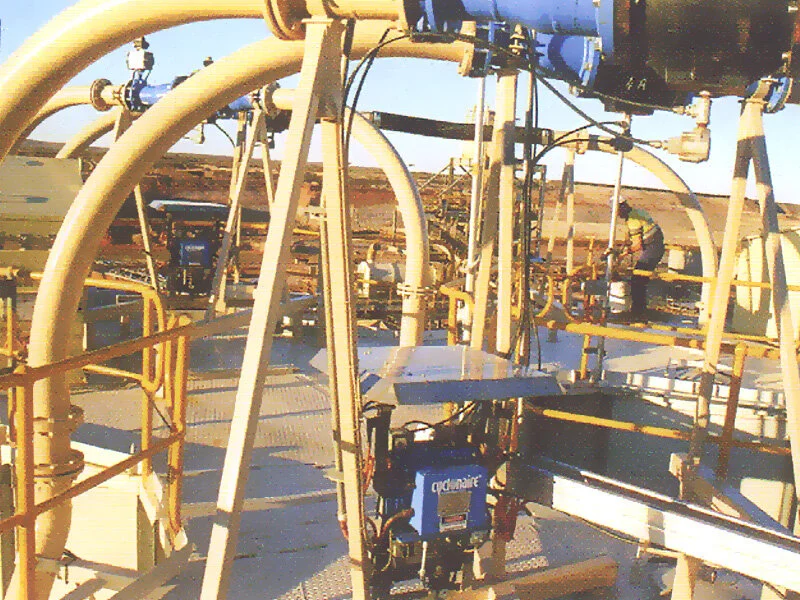

Silo roof view again - busy scene showing pipe work, Cyclonaire pinch type valves and shielded controllers.

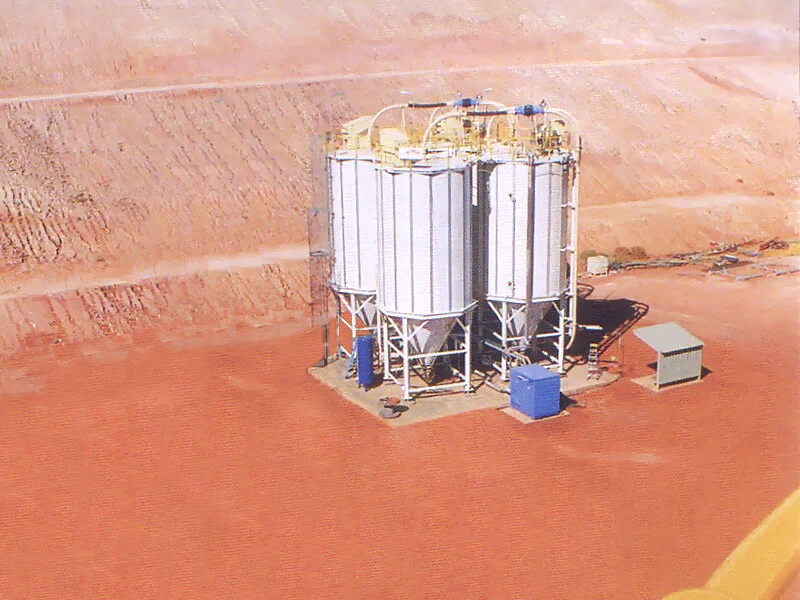

Looking North, view of 4 x 125t silos.

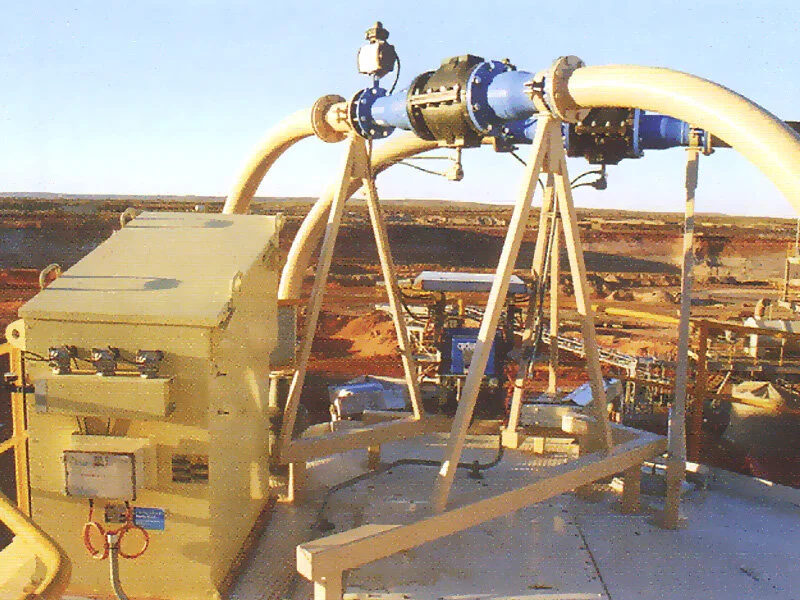

View from top of 4 x125t silo top decks showing dust collector at left, pinch type diverter valves, controller, prefabricated pipe work and supports.

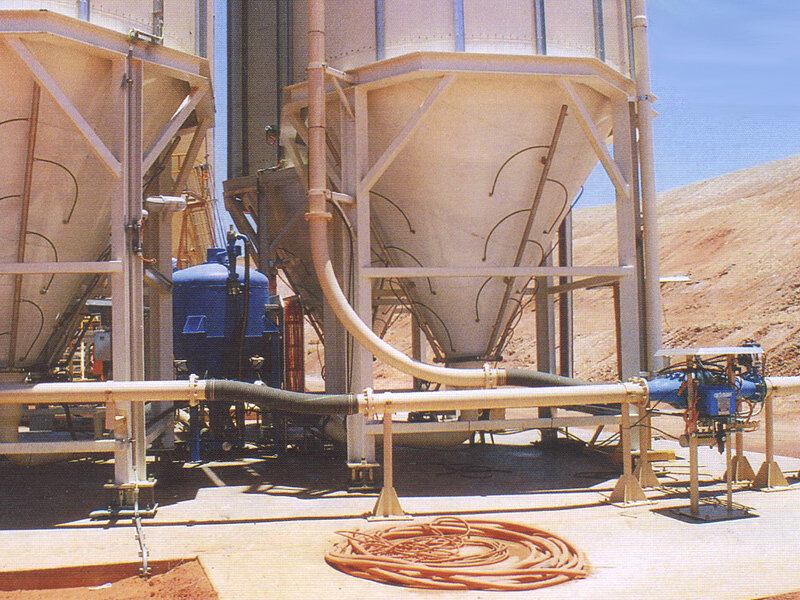

The HC-75 conveyor is clearly seen. The truck delivery inlet is on the RHS along with two of the Cyclonaire heavy duty pinch type valves chosen for their robustness. Alongside is the shielded valve controller. Also noticeable is the aeration set up.

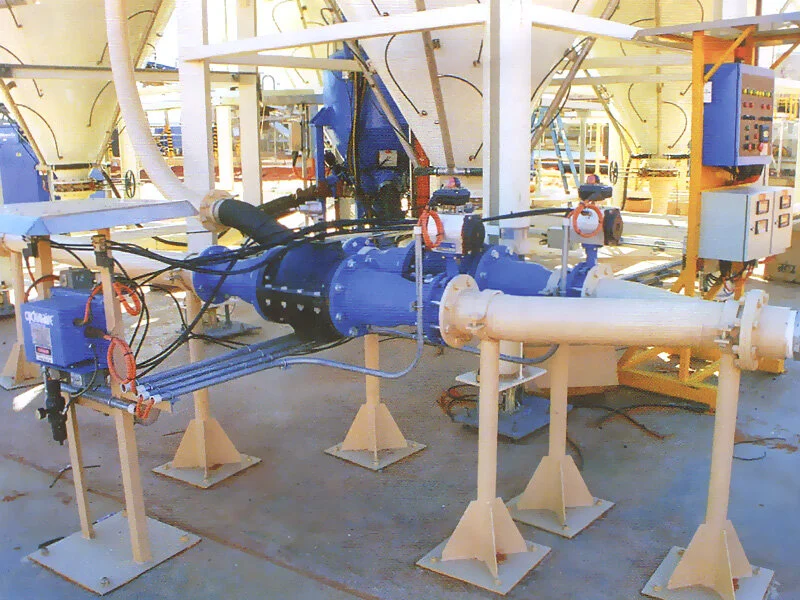

Truck delivery inlet, Cyclonaire pinch type diverter valves, valve controller, truck unloading control panel with load cell indicators and display panels on RHS.
